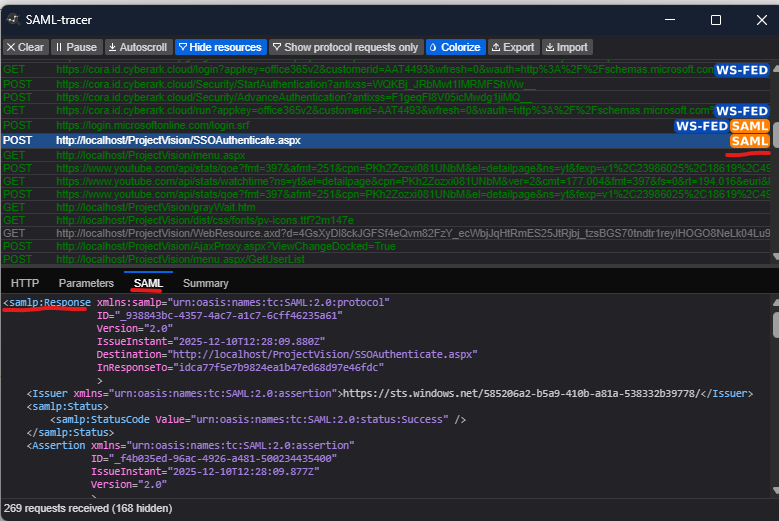

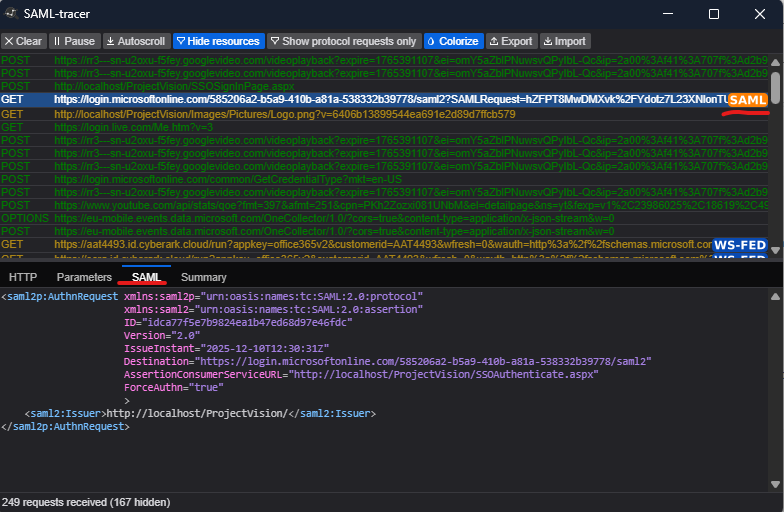

  • 6.2 Troubleshooting Using SAML Tracer

1. Introduction

This guide provides a standardized reference for configuring Single Sign-On (SSO) in PPM using the SAML 2.0 protocol.

It is intended for support engineers performing setup, configuration validation, or troubleshooting.

PPM acts as a Service Provider (SP), integrating with external Identity Providers (IdPs) to authenticate users securely.

SAML2 enables users to log in once with their organization’s IdP and seamlessly access PPM without a separate password.

2. Terminology Clarification

3. SSO Configuration

3.1 Key Parameters in SSO Integration

Reply URL (Assertion Consumer Service URL) = appURL/SSOAuthenticate.aspx

For example for localhost it is: http://localhost/ProjectVision/SSOAuthenticate.aspx

To enable SSO in PPM:

1. Open PPM and log in as an admin.

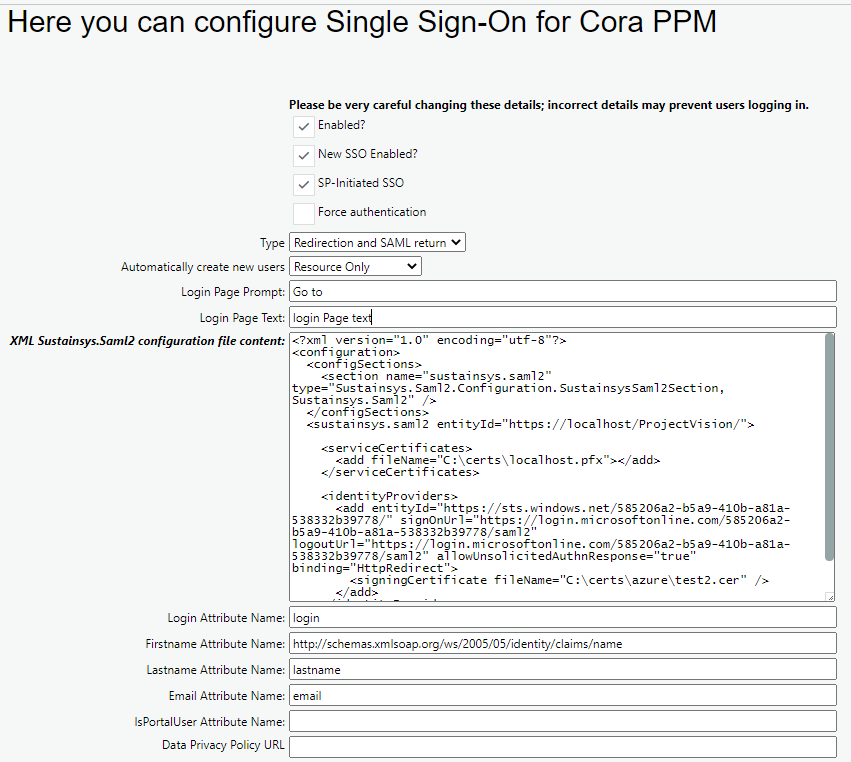

2. Navigate to: Administration | System | General | Single Sign-On
3. Configure each available field:

Parameter Overview

• Enabled? – Must be checked.
• New SSO Enabled – Must be checked (old solution deprecated).
• SP-Initiated SSO – Enable if using SP-initiated flow (see Section 4).
• Force Authentication – Forces re-authentication at IdP.
• Type – Redirection and SAML return.
• Automatically create new users – Select user type creation behavior.
• URL – IdP Sign-In URL (only for IdP-initiated flows).
• SignOut Redirection URL – IdP sign-out endpoint.
• Redirect Automatically at Login – Redirects users straight to IdP.
• XML Sustainsys.Saml2 configuration file – Required XML configuration.

3.2 PPM Integration with Sustainsys.Saml2

The PPM application leverages the external library Sustainsys.Saml2 to consume and process SAML 2.0 assertions. This library provides the required components to handle authentication flows, validate SAML responses, and manage Identity Provider (IdP) configurations. By utilizing Sustainsys.Saml2, PPM ensures a reliable, secure, and standards-compliant implementation of SAML2 Single Sign-On (SSO).

To enable this integration, a configuration file must be provided. This involves populating the Sustainsys.Saml2 XML configuration file with the necessary content settings.

1. Snippet: Example XML Configuration for Sustainsys.Saml2 on localhost

<?xml version="1.0" encoding="utf-8"?>

<configuration>

  <configSections>

    <section name="sustainsys.saml2"

             type="Sustainsys.Saml2.Configuration.SustainsysSaml2Section, Sustainsys.Saml2"/>

  </configSections>

  <sustainsys.saml2 entityId="http://localhost/ProjectVision/">

    <identityProviders>

      <add entityId="https://sts.windows.net/585206a2-b5a9-410b-a81a-538332b39778/"

           signOnUrl="https://login.microsoftonline.com/585206a2-b5a9-410b-a81a-538332b39778/saml2"

           logoutUrl="https://login.microsoftonline.com/585206a2-b5a9-410b-a81a-538332b39778/saml2"

           allowUnsolicitedAuthnResponse="true"

           binding="HttpRedirect">

        <signingCertificate fileName="C:\certs\localhost.cer"/>

      </add>

    </identityProviders>

  </sustainsys.saml2>

</configuration>

Main <sustainsys.saml2> Tag

The <sustainsys.saml2> element defines the root section for SAML configuration settings. It encapsulates all Identity Provider definitions required to establish secure SAML-based authentication.

Property:

entityId – A unique identifier for the Service Provider (SP).

This value should correspond to the PPM application’s base URL.

3.3 Identity Provider (IdP) Configuration

To configure a new Identity Provider (IdP), insert an <add> element within the <identityProviders> section of the Sustainsys.Saml2 configuration file. Each <add> entry defines a single IdP integration, including its endpoints, identifiers, and certificates required for secure communication.

2. Snippet: Example Identity Provider Definition

<add

  entityId="https://sts.windows.net/{tenant-id}/"

  signOnUrl="https://login.microsoftonline.com/{tenant-id}/saml2"

  logoutUrl="https://login.microsoftonline.com/{tenant-id}/saml2"

  allowUnsolicitedAuthnResponse="true"

  binding="HttpRedirect">

  <signingCertificate fileName="C:\certs\localhost.cer"/>

</add>

IdP Provider Properties

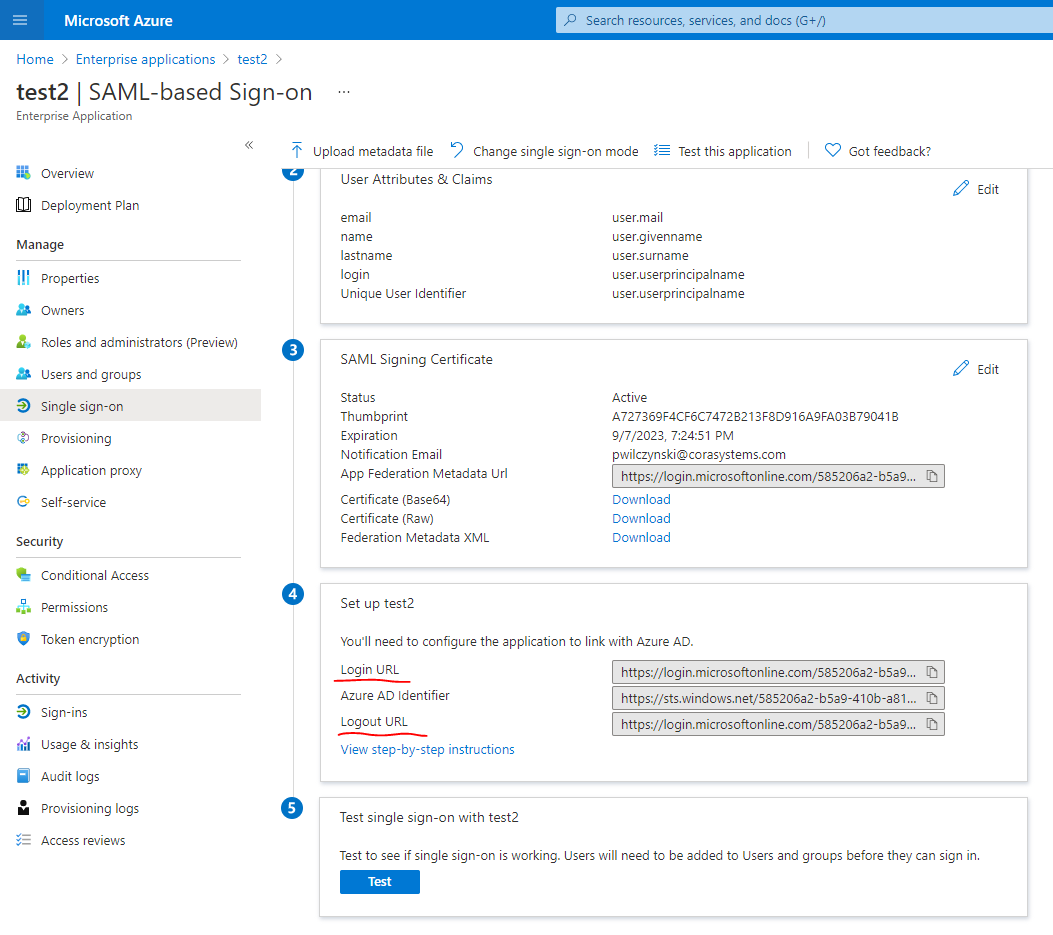

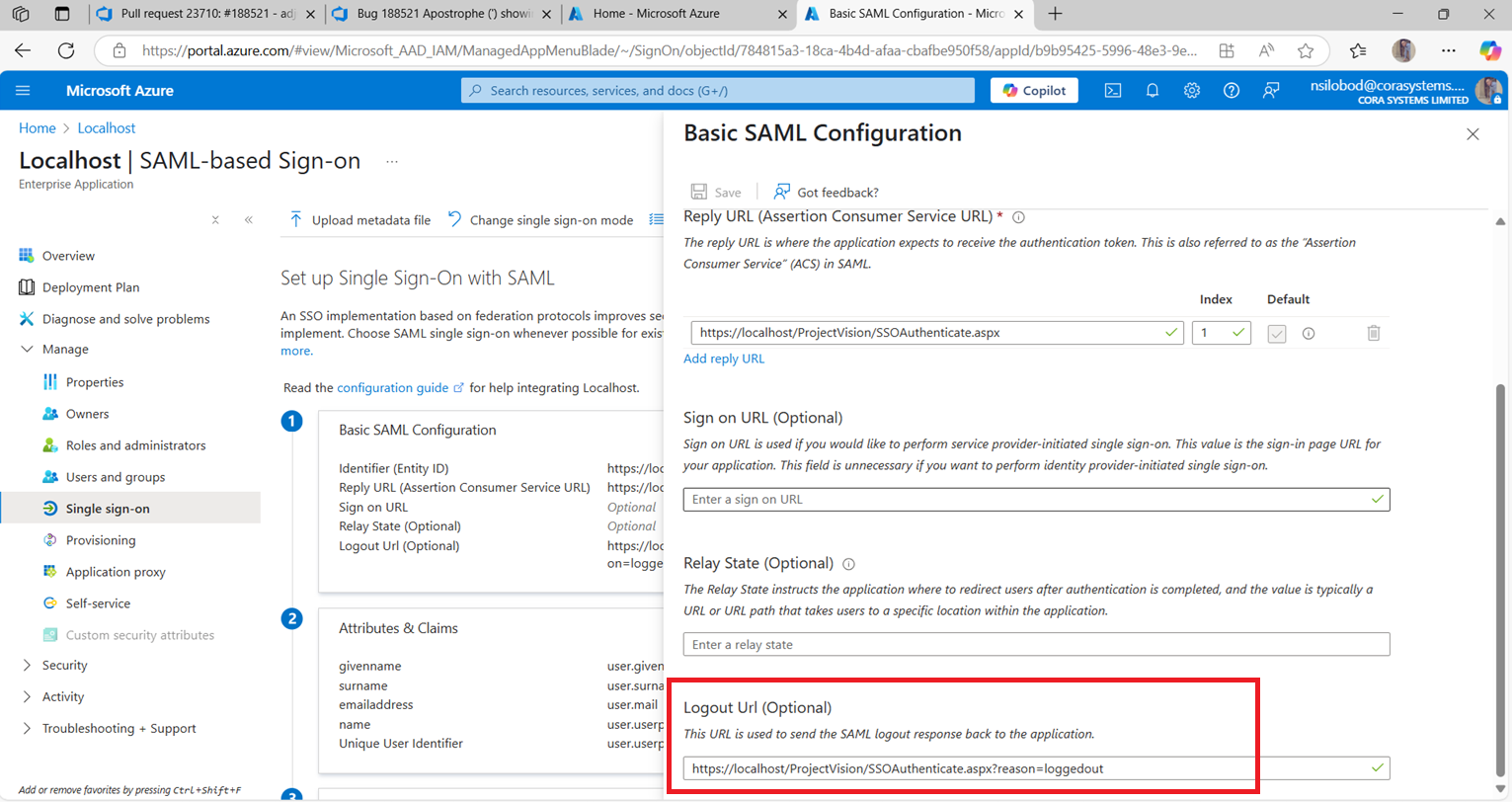

The image below illustrates where the Sign-On URL and Logout URL values are located within the Azure AD SAML-based Single Sign-On configuration:

3.4 Signing Certificate

The Signing Certificate (also referred to as the client certificate) is used to validate the integrity and authenticity of SAML assertions exchanged between the Service Provider (SP) and the Identity Provider (IdP).

Sustainsys.Saml2 supports two methods for attaching the signing certificate: file-based and store-based.

File-Based Attachment

In this method, the certificate file is stored on disk, and the application references its file path.

Ensure that the application pool user (AppPool identity) has read access to the certificate file’s location.

3. Snippet: Example of File-Based Attachment

<signingCertificate fileName="C:\certs\localhost.cer" />

Store-Based Attachment

Alternatively, the certificate can be installed on the server and accessed through the Windows Certificate Store.

This approach enhances security by avoiding direct file-based certificate handling.

4. Snippet: Example of Store-Based Attachment

<signingCertificate

  storeName="Root"

  storeLocation="LocalMachine"

  x509FindType="FindBySerialNumber"

  findValue="hereNumber" />

Note: Complete documentation for creating and managing Sustainsys.Saml2 configurations is available in the official guide:

https://saml2.sustainsys.com/en/stable/

3.5 Attribute Mapping Configuration

SAML attributes are pieces of user information included in the SAML assertion that the Identity Provider (IdP) sends to the Service Provider (SP) during authentication.

These attributes typically include user identifiers such as username, email address, first and last names, roles, or group memberships. The Service Provider uses these attributes to identify the user, establish a session, and apply appropriate access rules or personalization.

In other words:

SAML attributes = secure user profile data shared during the SSO handshake.

Purpose of Attribute Mapping

Because attribute names and formats differ among various IdPs, the PPM application must explicitly map incoming SAML attributes to its internal user fields. This ensures that authentication and authorization function correctly across different SSO configurations.

Required and Optional Attributes

The system expects the following attributes to be present in the SAML assertion:

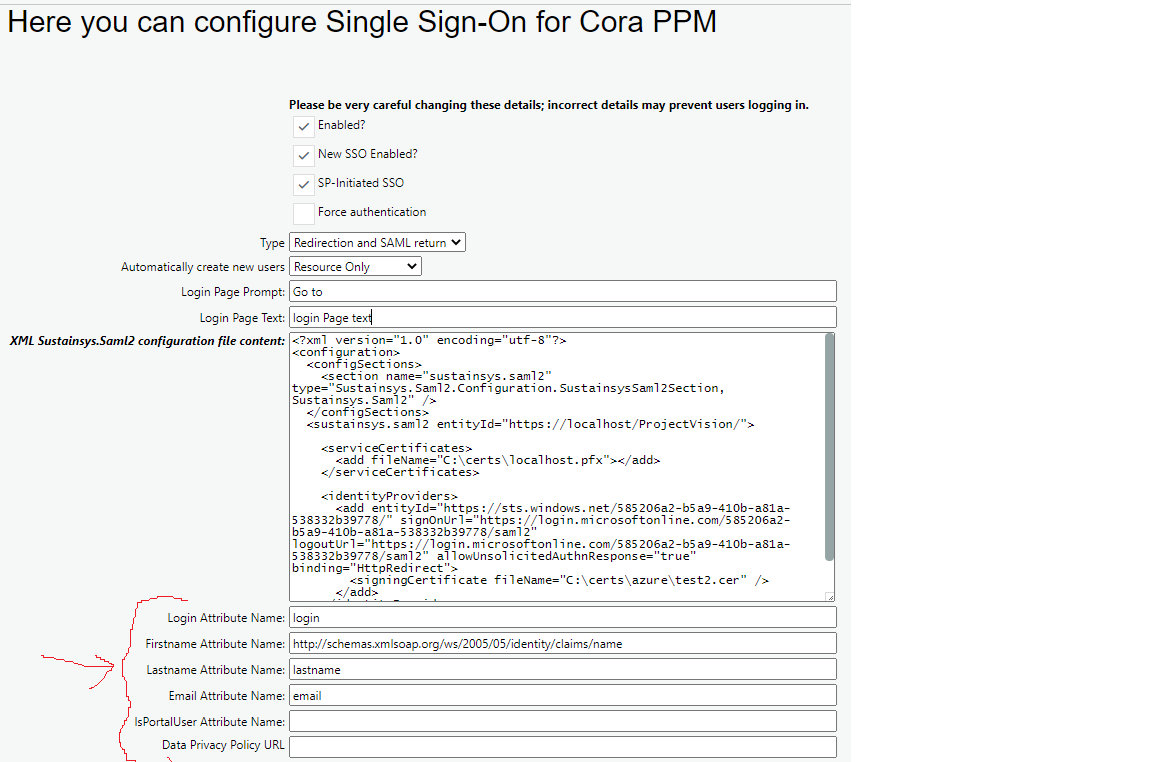

Mapping Behavior

The Login Attribute Name is mapped directly to the application’s username field.

The value provided by the Identity Provider must exactly match the username stored in PPM’s user database to ensure that the authentication assertion is correctly associated with the intended user account.

References

Sustainsys.Saml2 NuGet Package

 Sustainsys.Saml2 GitHub Repository

Sustainsys.Saml2 License

3.6 How to Use Multiple Identity Providers (IdPs)

Note: If you enable the multi-IdP feature, you must follow the complete process outlined below.

Step 1: Enable the Feature Toggle

Activate the following feature toggle to allow multi-IdP configuration:

Feature Toggle: 117326_Pentest_2023_Q4

Step 2: Modify SSO Configuration

Navigate to:

Administration | System | General | Single Sign-On

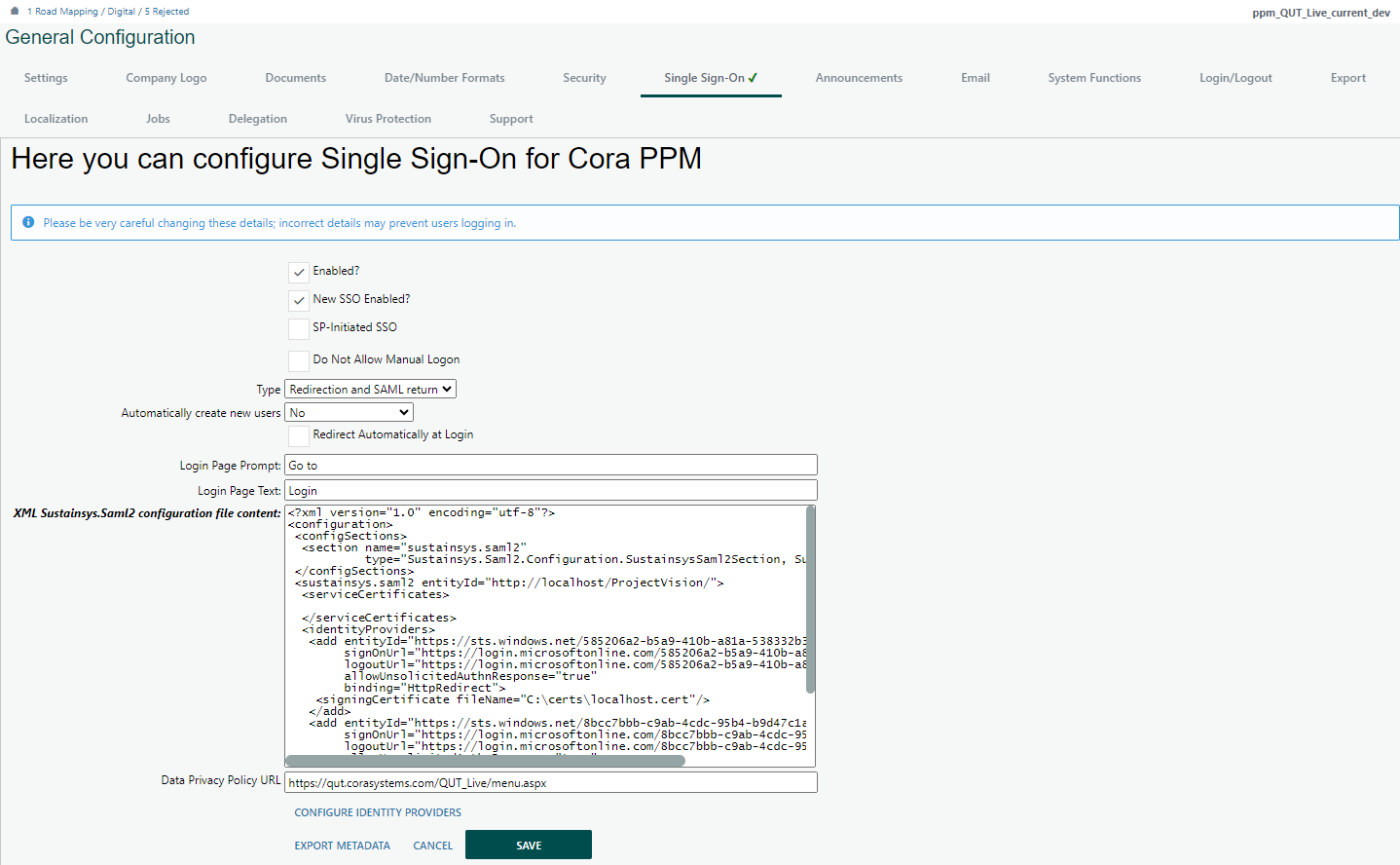

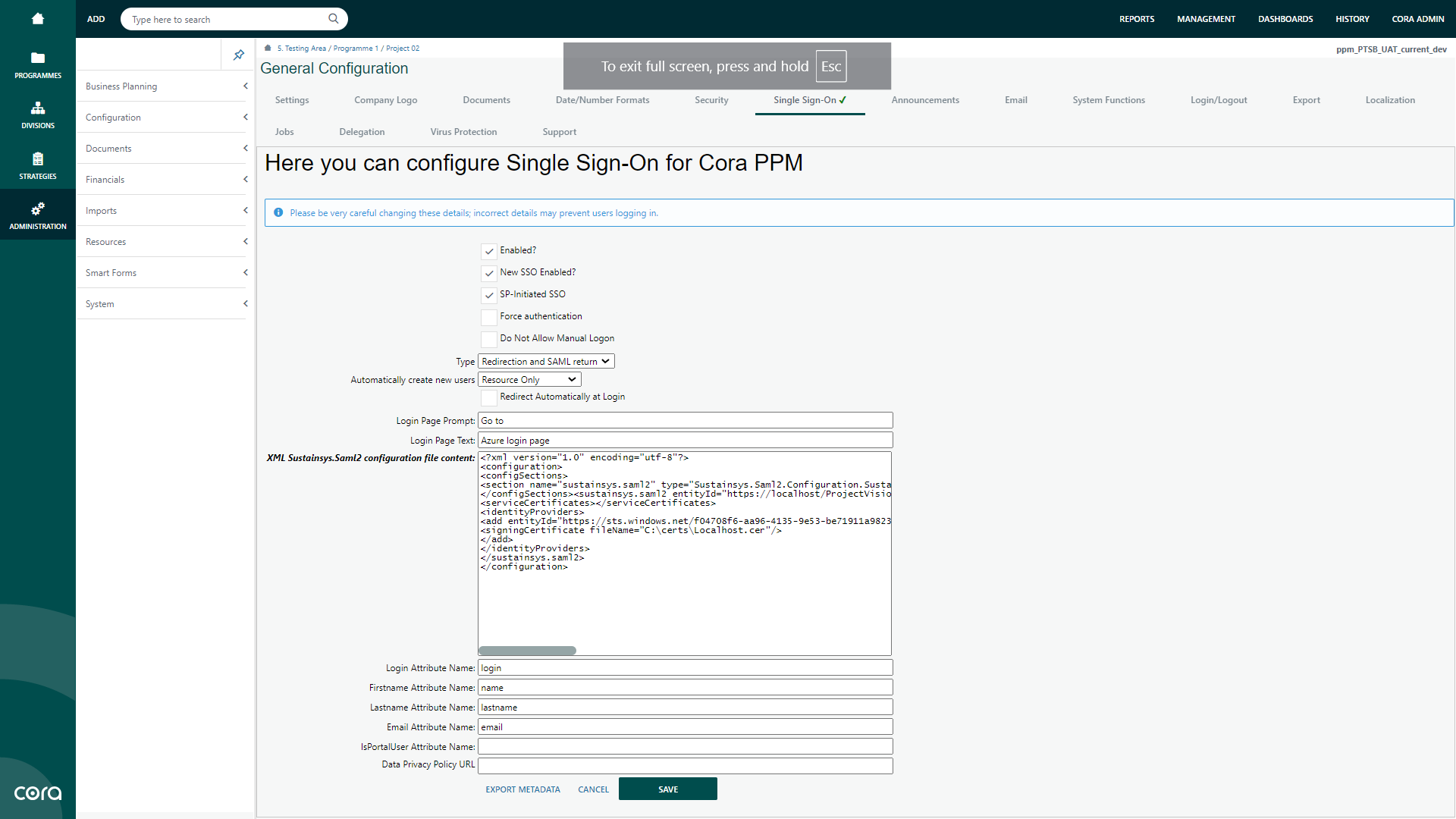

The updated Single Sign-On Configuration page is illustrated below.

Step 3: Add a New Identity Provider

To add a new Identity Provider in the Sustainsys.Saml2 configuration, edit the XML file by adding an additional <add> element inside the <identityProviders> node.

You can define multiple Identity Providers in this section.

5. Snippet: Example Configuration for an Additional Provider

<add entityId="https://sts.windows.net/8bcc7bbb-c9ab-4cdc-95b4-b9d47c1a1632/"

     signOnUrl="https://login.microsoftonline.com/8bcc7bbb-c9ab-4cdc-95b4-b9d47c1a1632/saml2"

     logoutUrl="https://login.microsoftonline.com/8bcc7bbb-c9ab-4cdc-95b4-b9d47c1a1632/saml2"

     allowUnsolicitedAuthnResponse="true"

     binding="HttpRedirect">

  <signingCertificate fileName="C:\certs\localhost2.cer" />

</add>

6. Snippet: Example XML Configuration for Multiple IdPs

<?xml version="1.0" encoding="utf-8"?>

<configuration>

  <configSections>

    <section

      name="sustainsys.saml2"

      type="Sustainsys.Saml2.Configuration.SustainsysSaml2Section, Sustainsys.Saml2"

    />

  </configSections>

  <sustainsys.saml2 entityId="http://localhost/ProjectVision/">

    <identityProviders>

      <add

        entityId="https://sts.windows.net/585206a2-b5a9-410b-a81a-538332b39778/"

        signOnUrl="https://login.microsoftonline.com/585206a2-b5a9-410b-a81a-538332b39778/saml2"

        logoutUrl="https://login.microsoftonline.com/585206a2-b5a9-410b-a81a-538332b39778/saml2"

        allowUnsolicitedAuthnResponse="true"

        binding="HttpRedirect">

        <signingCertificate fileName="C:\certs\localhost.cer" />

      </add>

      <add

        entityId="https://sts.windows.net/8bcc7bbb-c9ab-4cdc-95b4-b9d47c1a1632/"

        signOnUrl="https://login.microsoftonline.com/8bcc7bbb-c9ab-4cdc-95b4-b9d47c1a1632/saml2"

        logoutUrl="https://login.microsoftonline.com/8bcc7bbb-c9ab-4cdc-95b4-b9d47c1a1632/saml2"

        allowUnsolicitedAuthnResponse="true"

        binding="HttpRedirect">

        <signingCertificate fileName="C:\certs\localhost2.cer" />

      </add>

    </identityProviders>

  </sustainsys.saml2>

</configuration>

When multiple Identity Providers are used, each provider must have a separate configuration specifying its sign-in URL, sign-out URL, and attribute mapping.

Step 4: Configure Identity Providers

Navigate to:

Administration → System → General → Single Sign-On → Configure Identity Providers

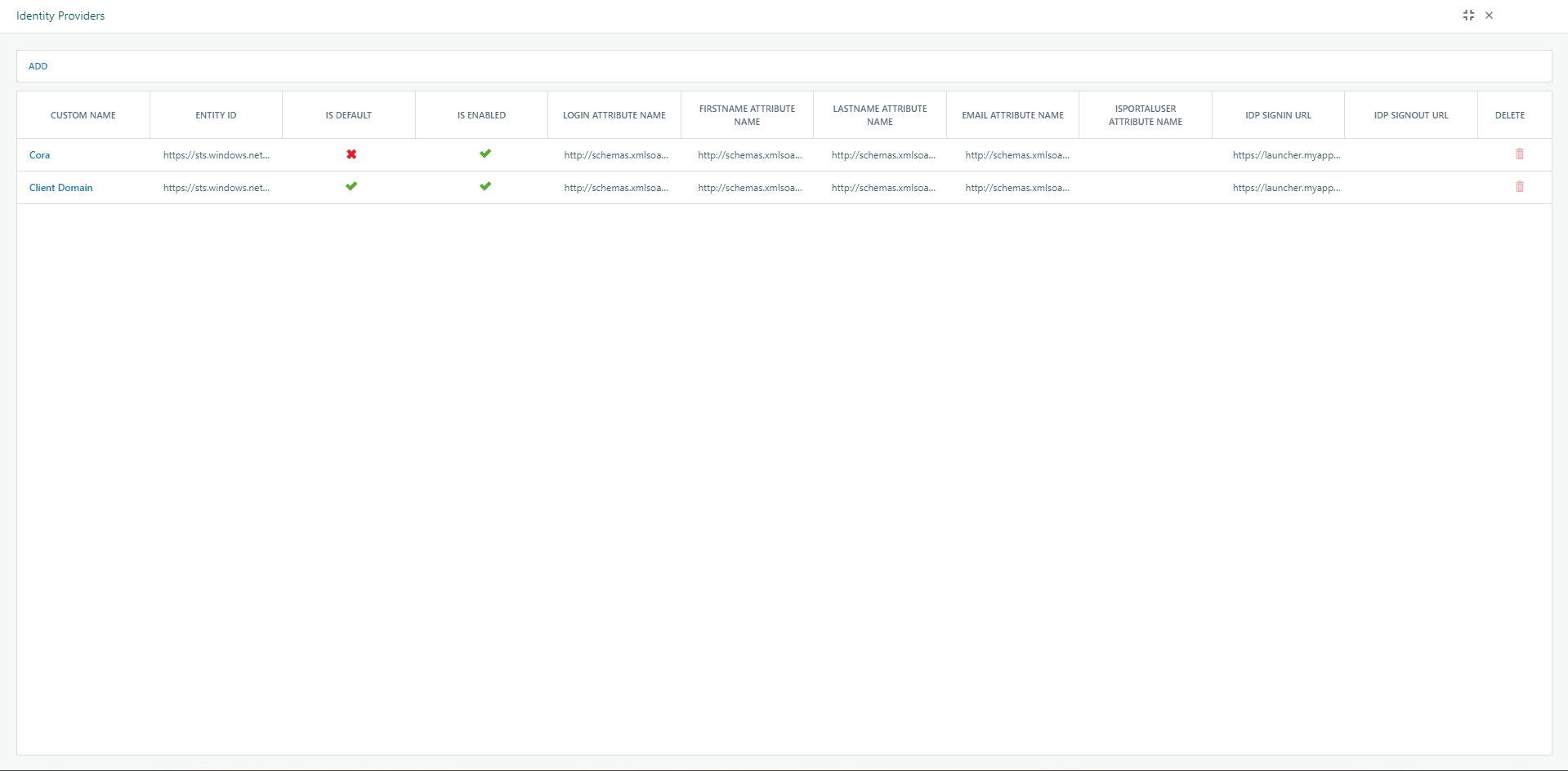

A view similar to the one below should appear.

Within this interface, you can add or edit Identity Providers.

The following properties are available:

Attributes 5–9 are configured in the Attribute Mapping Section.

3.6.1 Sign-In Pages

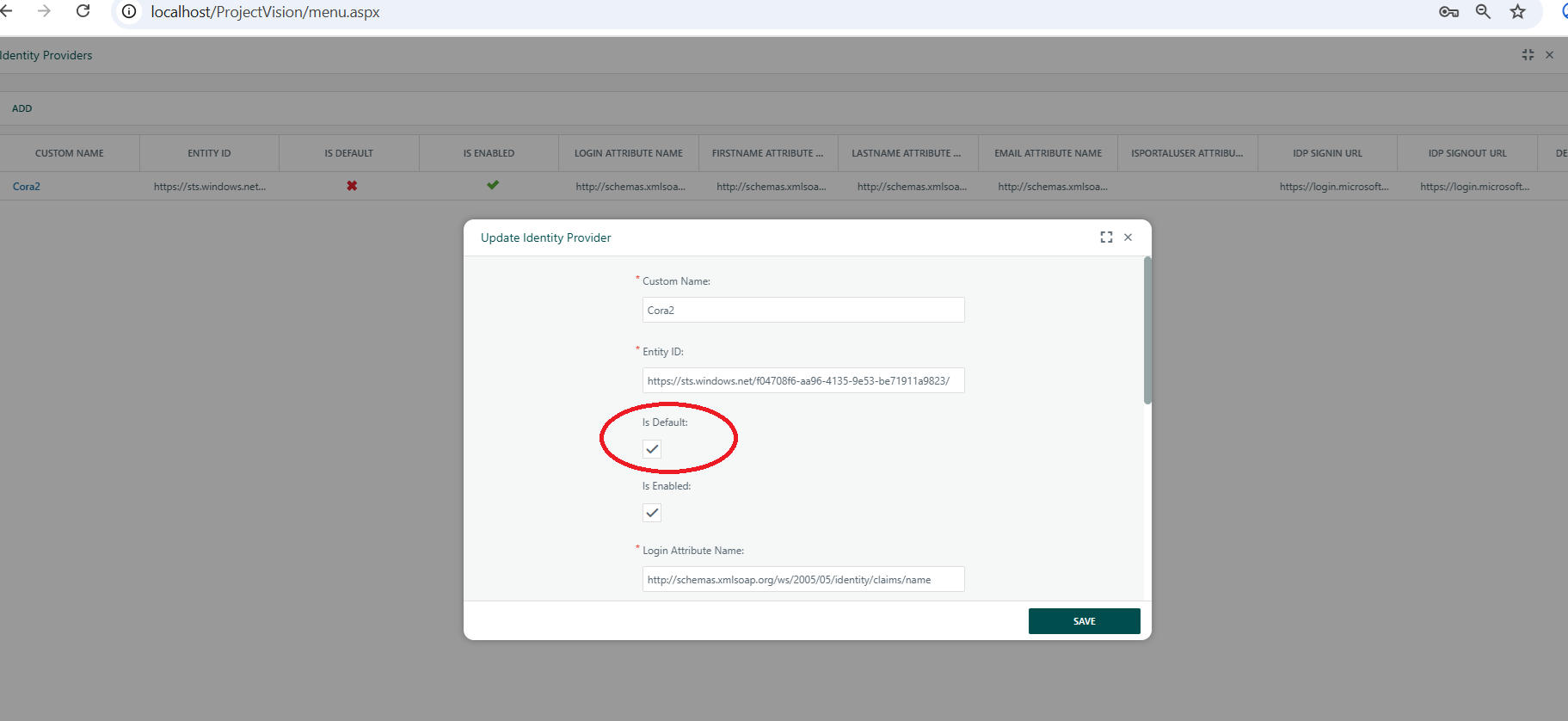

If an Identity Provider is marked as default, it will be used during standard sign-in requests via:

app-url/SSORedirectionPage.aspx

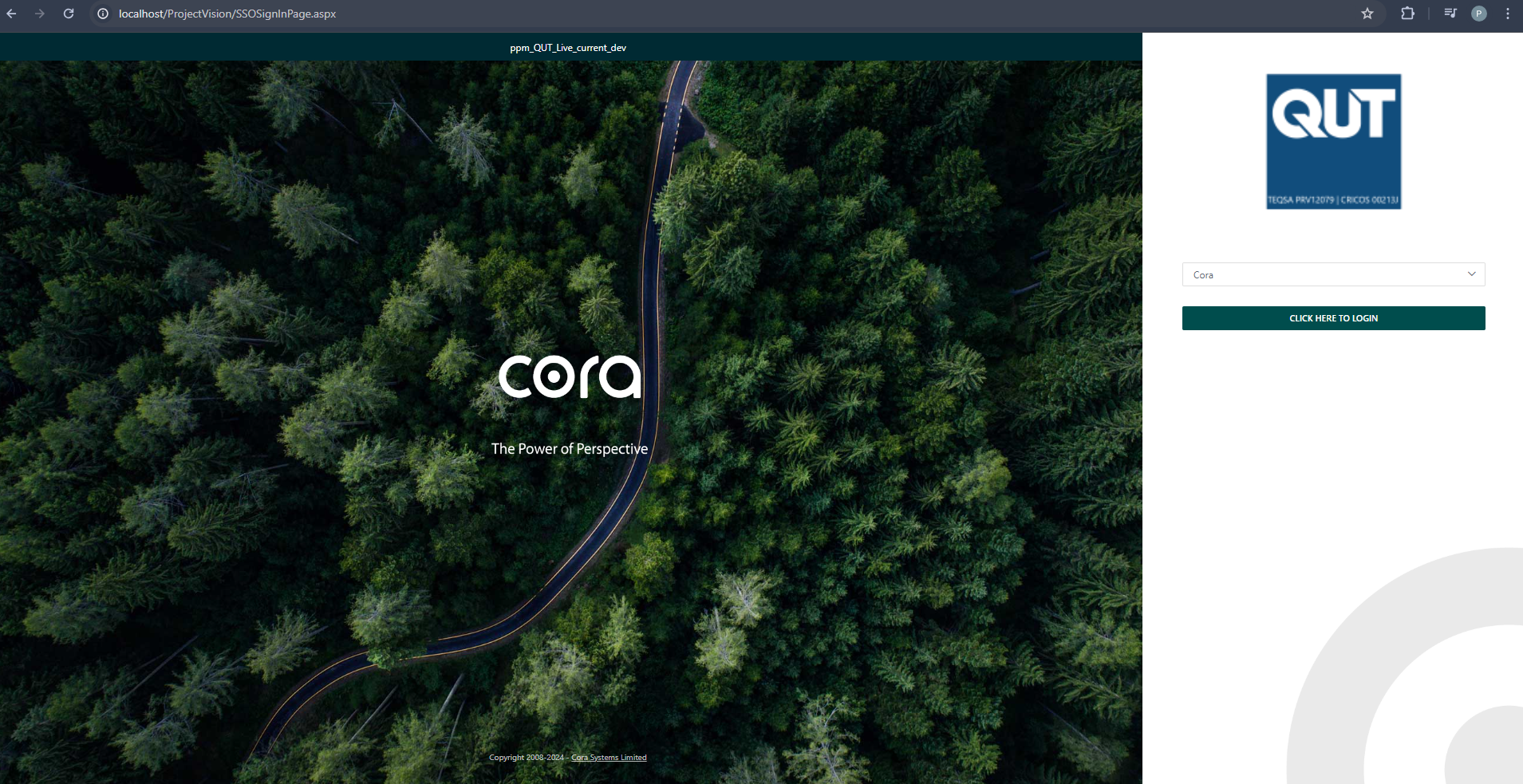

If a user wishes to sign in using a non-default provider, use:

app-url/SSOSignInPage.aspx

3.6.2 Additional User Configuration

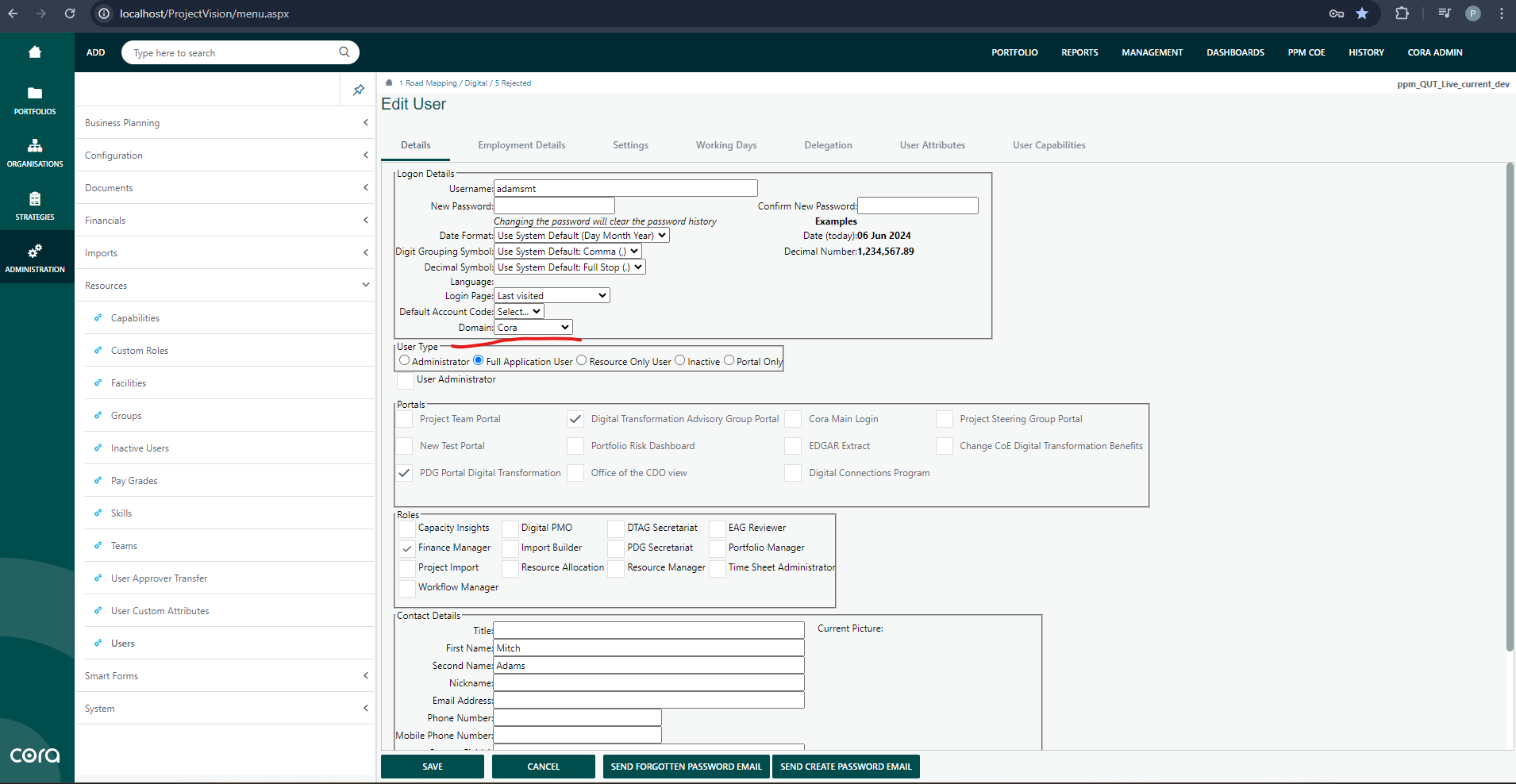

When multiple Identity Providers are configured, each user must be explicitly associated with one IdP.

Steps:

1. Go to Administration | Resources | Users.
2. Select a user and locate the Domain field.
3. Choose the relevant Identity Provider from the list.
4. Save the changes.

Quick Setup Instructions for User Identity Provider Assignment

1. Open SQL Server Management Studio (SSMS).
2. Locate the relevant database.
3. Run the following query to list all configured Identity Providers:

11. Snippet: Retrieve IdP Providers

SELECT * FROM [dbo].[SSO_IdentityProvider]

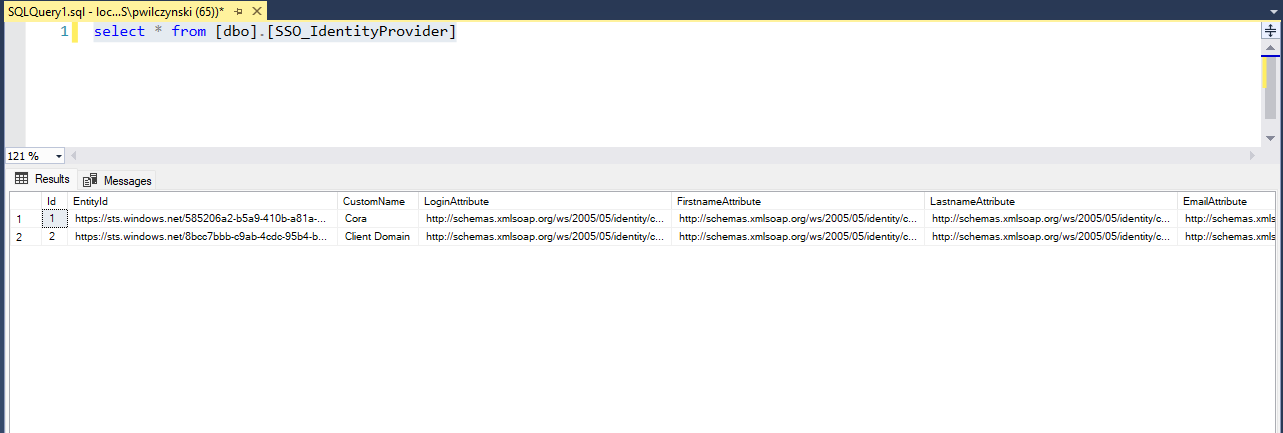

An example result is shown below.

    4. Identify the Id value of the target provider.
    5. Update users to assign them to that provider using the following query:

12. Snippet: Update User(s) with Assigned Identity Provider

UPDATE [dbo].[appuser]

SET IdentityProviderId = 'Id_Of_Your_Provider'

WHERE

-- condition (e.g., username or group filter)

Example Configuration File:

sso_config.xml

4. Quick Introduction to SAML2 Flows

The Security Assertion Markup Language (SAML2) defines standardized mechanisms for exchanging authentication and authorization data between an Identity Provider (IdP) and a Service Provider (SP).

In practice, there are two primary SSO flow types: IdP-initiated and SP-initiated.

Both flows result in the user being authenticated by the IdP and granted access to the SP, but they differ in how the process begins.

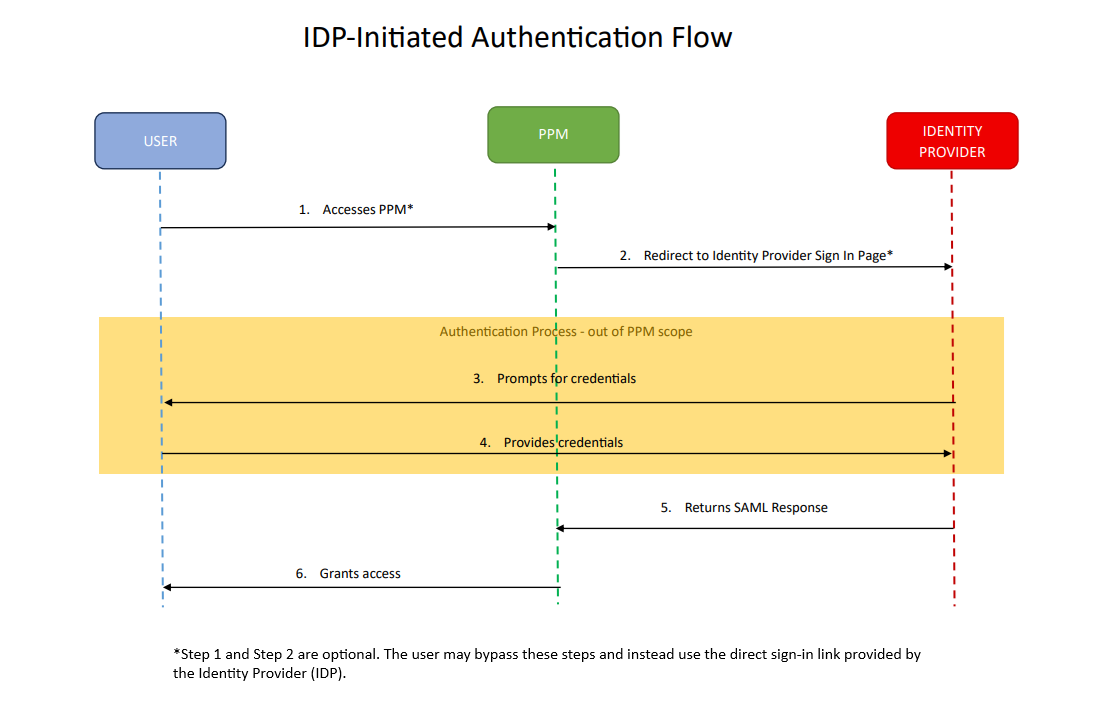

4.1 IdP-Initiated SSO

In an IdP-initiated Single Sign-On flow, the login process begins at the Identity Provider.

1. The user navigates directly to the IdP’s login portal.
2. The IdP authenticates the user using its own credentials and policies.
3. After successful authentication, the IdP sends a SAML Assertion to the Service Provider (SP).
4. The SP validates the assertion and establishes a user session, granting access to the application—without requiring the user to visit the SP first.

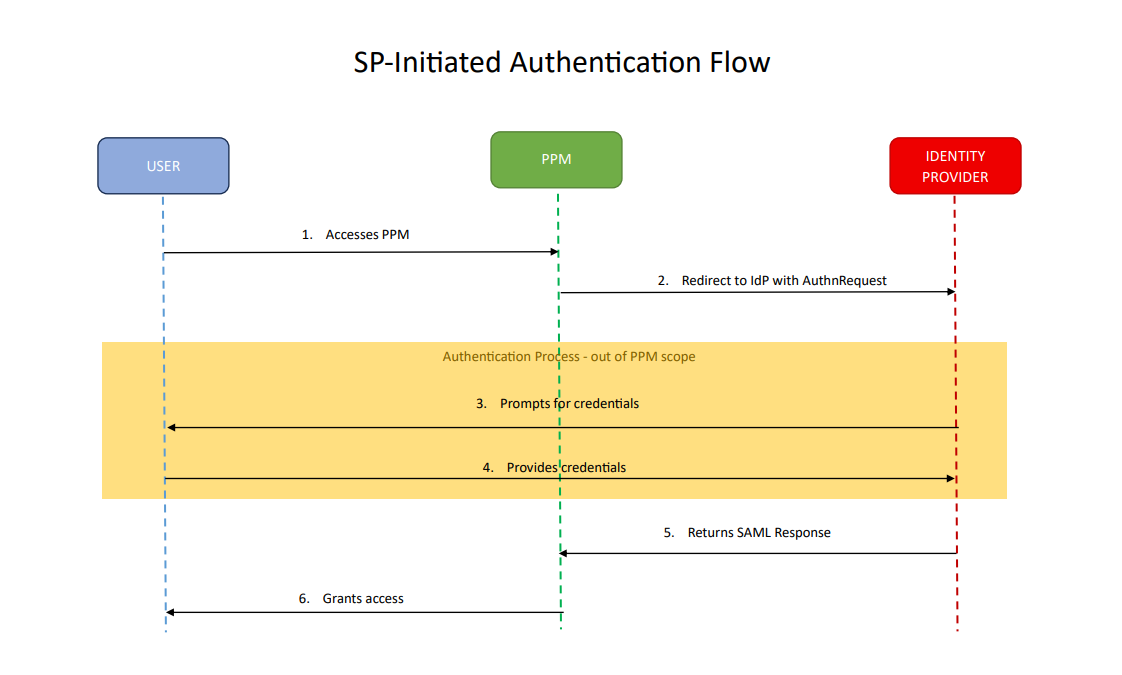

4.2 SP-Initiated SSO

In an SP-initiated Single Sign-On flow, the login process begins at the Service Provider.

1. The user navigates to the SP application (e.g., PPM).
2. The SP detects that the user is not authenticated and redirects them to the IdP’s sign-on endpoint.
3. The IdP authenticates the user.
4. The IdP then returns a SAML Assertion to the SP.
5. The SP validates the assertion and creates an authenticated session for the user.

4.3 Flows in Summary

In short:

IdP-initiated: user begins at the IdP.

SP-initiated: user begins at the SP.

5. Additional System Configuration

This section describes final configuration steps necessary for a functional and fully integrated SAML2 Single Sign-On (SSO) setup, including updating the application URL, local debugging adjustments, and configuring logout behavior.

5.1 Update Application URL

The Application URL defines the Service Provider’s base address used in SAML Authentication Requests.

Update the ApplicationURL value in the database as shown below.

13. Snippet: Query for Updating ApplicationURL

UPDATE system_configuration

SET ApplicationURL = 'https://localhost/ProjectVision/'  -- Adjust as needed

⚠ Important:

Always include the trailing slash ( / ) at the end of the URL.

This ensures that response URLs are built correctly, e.g.:

https://localhost/ProjectVision/

5.2 Local Debugging Configuration

When performing local debugging with an admin account, remember that SAML authentication identifies users based on their email address.

If your PPM admin account uses a different username, you must update it to match your IdP’s email identity.

14. Snippet: Query to Update Username for Admin Account

UPDATE dbo.appuser

SET username = 'youremail'

WHERE [user_id] = 1

This allows local authentication via SAML to correctly associate the assertion with your admin account.

5.3 Example Local Settings

SAML configuration file used locally:

LocalSAML.xml

Additionally, ensure that the default IdP endpoint is properly marked as shown below.

5.4 Logout Process

When using SSO, the logout process involves two coordinated steps:

1. Application Logout (ASP.NET):

The user session is terminated within the PPM web application (ASP.NET Web Forms).

2. Azure (IdP) Logout:

After local logout, the user is redirected to the Azure logout page along with their SSO session identifier (ssoID).

This ensures the user is logged out from the Azure identity session as well.

Configuring the Redirect After Logout

To provide a seamless user experience, you can configure Azure AD to redirect users back to a specific PPM page after logout.

This page should notify users that logout was successful and offer a “Login Again” option.

Add the redirect URL to your Azure Enterprise Application settings.

Typically, the redirect path should end with:

SSOAuthenticate.aspx?reason=loggedout

6. Tips and Tools

This section provides practical guidance, troubleshooting methods, and diagnostic tools for maintaining and debugging SAML2 Single Sign-On (SSO) integrations in PPM.

6.1 General Information

Configuration Reload Requirement

Any modification to the Sustainsys.Saml2 XML configuration requires an application pool restart for the changes to take effect.

Without restarting, updated values will not be applied, and the system may continue operating with outdated or cached settings.

Case Sensitivity and Hidden Characters

SAML2 configurations are case-sensitive. Even a single mismatch or hidden character can invalidate assertions, signatures, or bindings.

How to Detect and Remove Hidden Characters

• VS Code: View → Toggle Render Whitespace, and enable “Render Control Characters.”
• Notepad++: View → Show Symbol → Show All Characters

Checking Logs

In case of authentication or SSO-related issues, review recent entries in the system log.

You can use the query below to retrieve the latest log records.

15. Snippet: Query to Retrieve Log Entries

SELECT TOP(100) *

FROM log

-- WHERE Entry_Date >= '2025-10-01' AND Entry_Date <= '2025-10-03'

ORDER BY log_id DESC

Common Integration Issues

Most SAML integration problems originate from mismatched configurations between the client’s metadata and the Service Provider (SP) setup.

The most frequent root causes include:

6.2 Troubleshooting Using SAML Tracer

The SAML Tracer browser extension is an essential diagnostic tool for analyzing SSO traffic and validating SAML requests and responses.

Installation

1. Install the SAML Tracer extension (available for Chrome and Firefox).
2. Enable recording and perform an authentication attempt.

Authentication Request

When SP-initiated login is triggered, the PPM application generates and sends an Authentication Request to the Identity Provider (IdP).

Destination and ACS URL Validation

It is critical to verify that the following parameters are configured correctly:

Both values are case-sensitive and must be free of hidden characters (e.g., non-breaking or zero-width spaces).

Consistency between IdP and SP configuration is essential for successful authentication.

Authentication Response

After successful authentication, the IdP sends a SAML Response to the SP.

This response includes a SAML Assertion that contains user information such as username, email, and roles, as configured in the IdP.

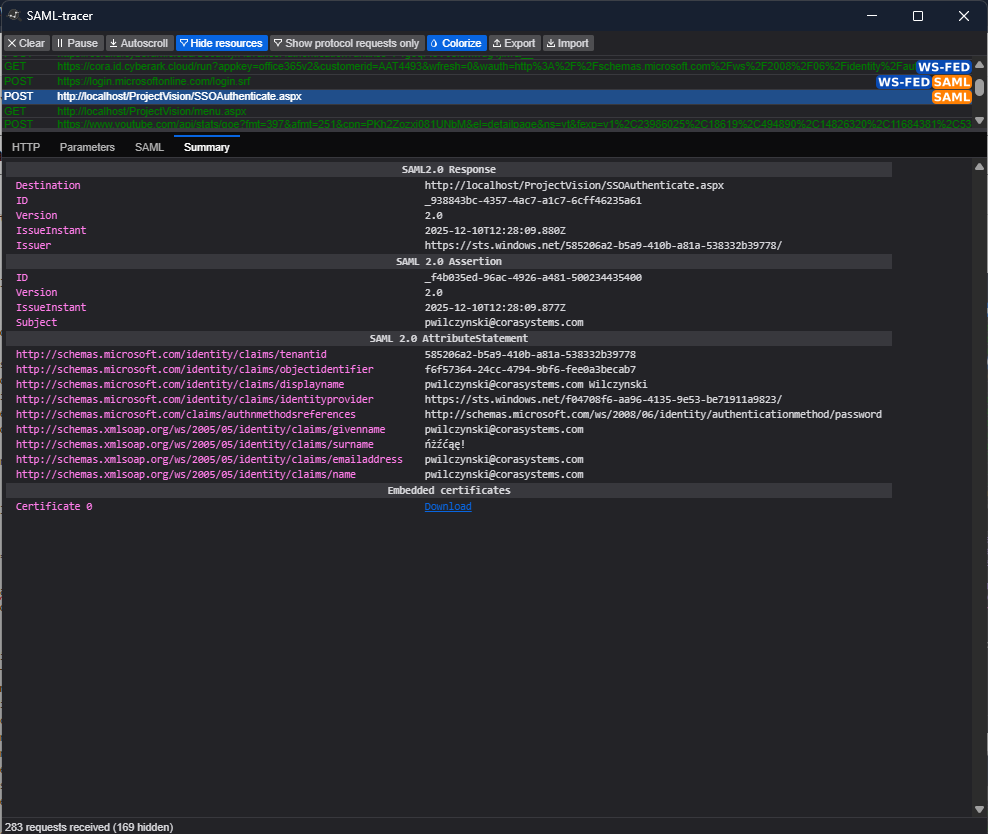

Below is an example of an Authentication Response and Authentication Response Summary.

Verify the following:

• Issuer: Matches the IdP entity defined in the metadata exactly.
• Attribute Names: Match those configured in the PPM attribute mapping.
• Formatting: No hidden or extra characters present.

Any mismatch in naming, case, or structure will cause failed assertions or rejected authentication responses.

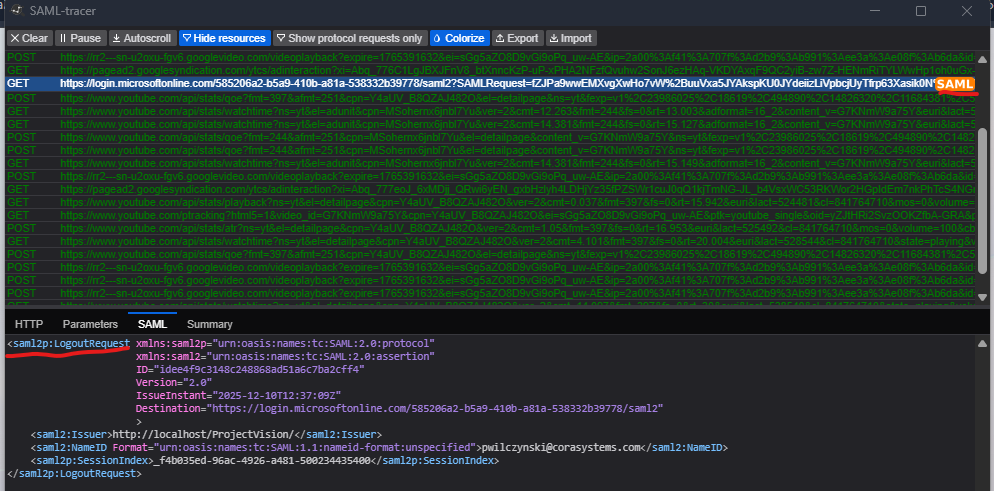

Authentication Logout Request

When SP-initiated logout is enabled, the Service Provider generates a LogoutRequest message and sends it to the Identity Provider.

Key Elements to Validate:

By validating these parameters and reviewing the SAML Tracer logs for discrepancies, administrators can quickly isolate and resolve most SSO configuration or communication issues.
