Overview of Cora API

Our API is the Cora PPM API - it talks to Cora PPM. It doesn't talk to anything else. It can't interface to Oracle, or SAP for example.

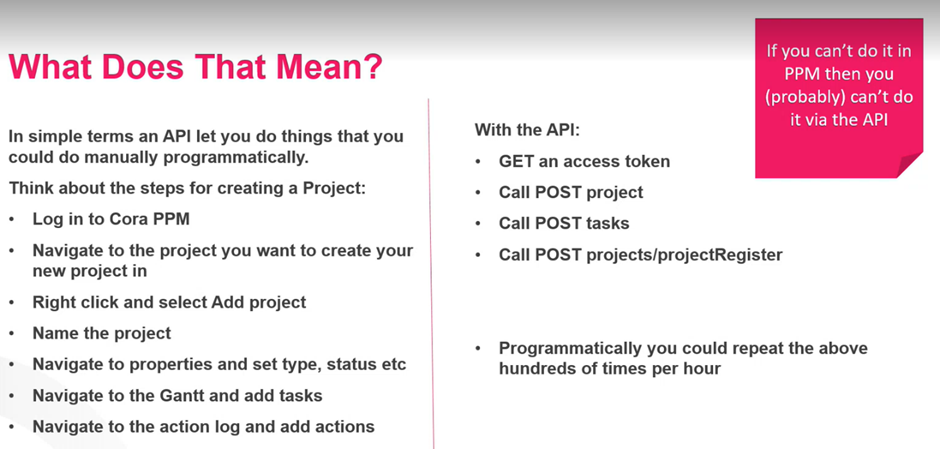

It's a programming interface, so it is not for end users. There are users who can use it but they are technical people typically.

Important Misconceptions

• Our API can update other applications

• Swagger is NOT the API. Swagger is simply the tool to look at the end points of the API.

• Our API is purely for pushing and pulling data into PPM

• We do not have 2 APIs. We kind of have more than one. PV times - we have customers still using the old API. But as far as Cora are concerned, we only have one. Old one is legacy

• API is secure

RESTful and Endpoints

REST = Representational State Transfer. We do not need to know or care about this.

All this means is that it conforms to a set of architectural constraints part of which includes provision of end points to provide the ability to read, update and delete data.

Endpoints

GET - Gets data. Example = Get Project (Get data for one project)

PUT and POST - Update and insert data

Delete - To delete data. The Cora API has very few of these - on purpose

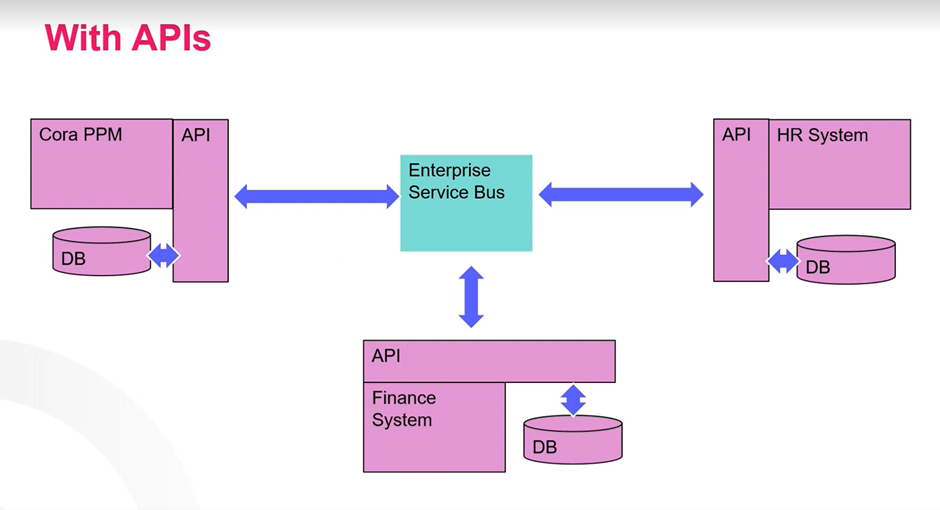

Before APIs, bespoke code would need to be configured in order for systems to be able to communicate. This was time consuming and costly, and there were many of them. If a products data base changed, then rework would need to be done.

APIs protect against data base changes - it doesn't matter if Cora's data base changes, teh API will still be able to work with it, unlike in the past

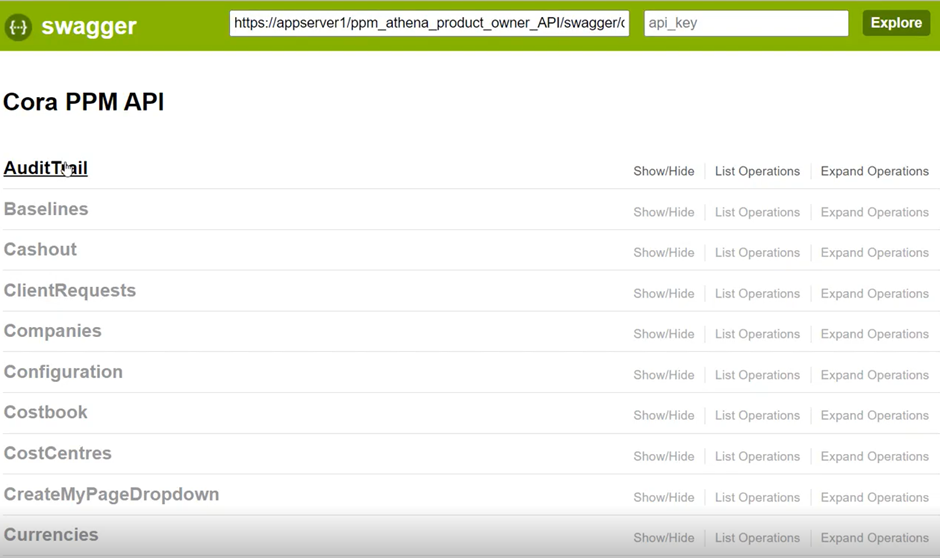

SWAGGER

Swagger is NOT the API - it is a window into the endpoints. Developers and customers use swagger to see what endpoints are available.

The list refers to the calls it can make.

Sometimes the API is tweaked for a specific customer. So you may have a customer with bespoke project data, the Get Project would be tweaked to pull in that additional data.

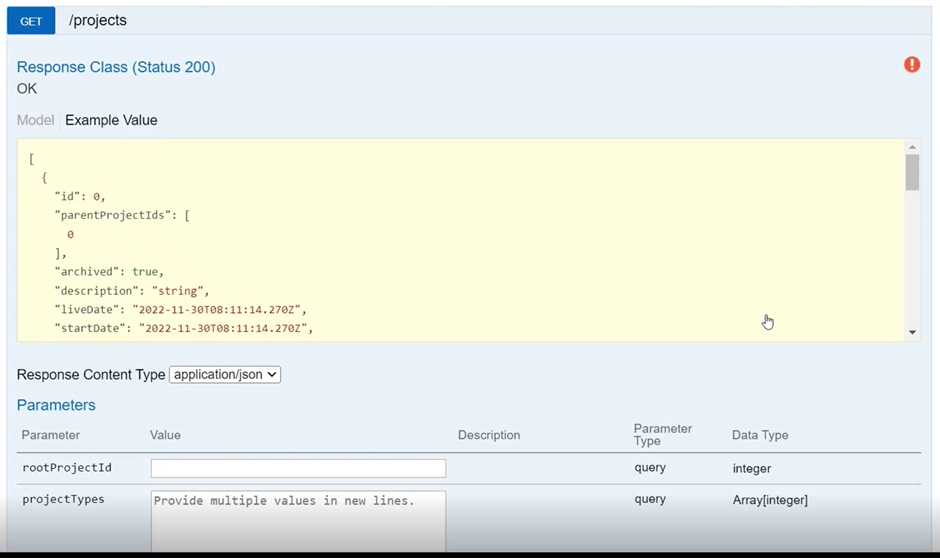

Get Projects Example

Written in JSON. Structure of messages sent out.

You pass in the ID and it brings back the list of projects.

Customer asks - can i use x endpoints? Check Swagger.

He sends that to the application via SEND and gets a response back;

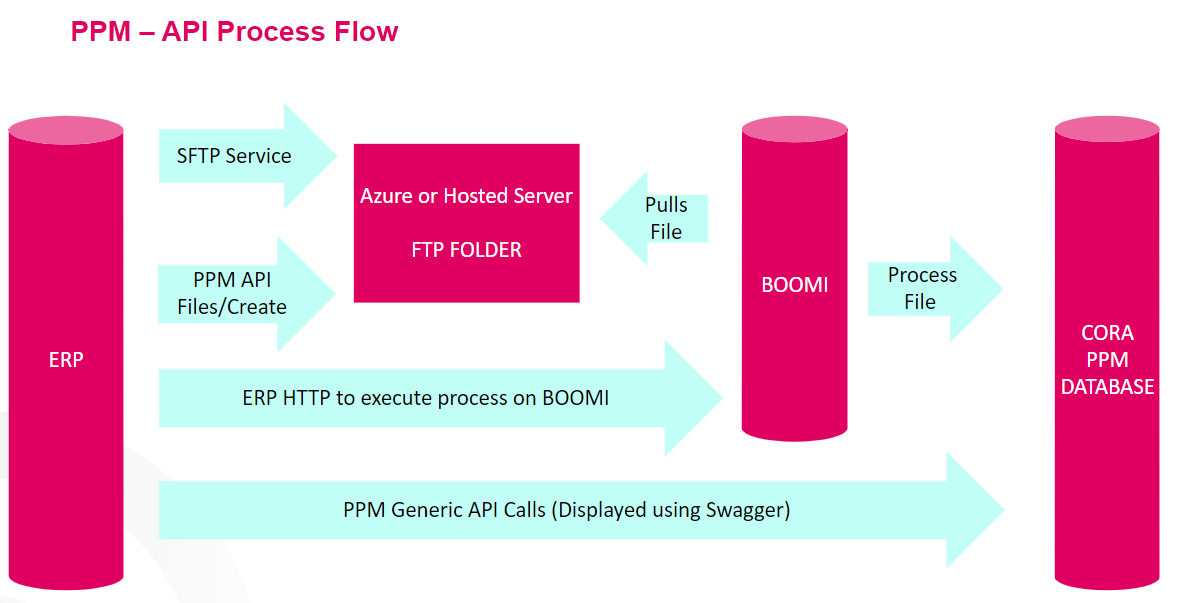

API Process Flow

Misc Tips

Where to find the API administration UI

1. Log in to Cora PPM as an Administrator.

2. Navigate to Admin → System → API (the menu item will be labelled "Cora PPM API").

3. The page Admin/Config_API.aspx^↗ opens with a tab strip across the top.

Tabs in the API admin page

How to call the API from external code

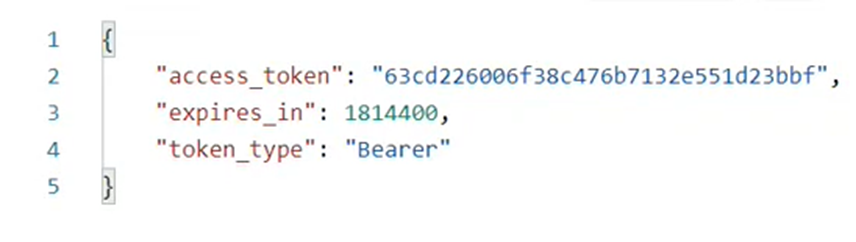

Step 1 – Get a bearer token (user-based OAuth flow)

POST {base_url}/identity/connect/token
Content-Type: application/x-www-form-urlencoded

grant_type=password&username={user}&password={pass}&client_id={client_id}&client_secret={secret}&scope=pv

Step 2 – Make API requests

GET {api_url}/projects?Limit=50&Offset=0
Authorization: Bearer {token}
Accept: application/json

Common query parameters (all list endpoints)

Reading paginated data in a loop

Check response headers after each call:

• Pagination-Total — total number of matching records

• Pagination-Returned — how many were in this batch

• Increment Offset by Limit and repeat until Offset >= Total

Swagger/OpenAPI interactive documentation

The modern REST API ships with Swagger UI. Access it by browsing to the root URL of the API service (e.g., https://{your-server}/api/). It will redirect to swagger/ui/index. From there, click Authorize, enter your OAuth credentials, and you can browse and test every endpoint interactively.

Common pitfalls

• Model projects: Many write endpoints (POST /projects, PUT /projects/{id}, POST /tasks, etc.) will return 400 Bad Request if the target project is a model project. Always check that your project ID is not a model project.

• Admin-only endpoints: Endpoints decorated with [AdminOnly] (such as creating users, importing financials, deleting organisations) will return 403 Forbidden if the authenticated user does not hold administrator rights in the system.

• Circular references: PUT /projects/{id} validates that moving a project to a new parent would not create a circular hierarchy. The call will fail with 400 Bad Request if it would.

• Regenerating API keys: Clicking Recreate on the API Keys tab immediately breaks any running integration. Always coordinate with integration owners first.

• Limit cap: The default limit is capped at 500. Without the ExceedApiDefaultLimit permanent feature toggle turned on, requesting more than 500 records silently truncates to 500.

• Period format: Financial/forecasting endpoints expect fiscal period values in YYYYMM format (e.g., 202406). Any other format is rejected with 400 Bad Request.
