Baseline

The Gantt allows for the baseline of the project to be viewed alongside the current Timeline.

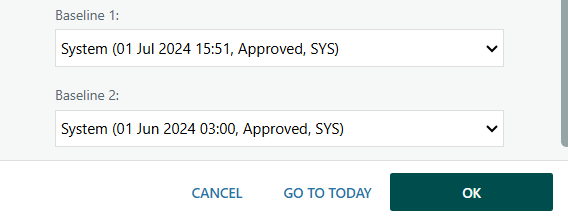

The baseline is selected in the Gantt settings modal:

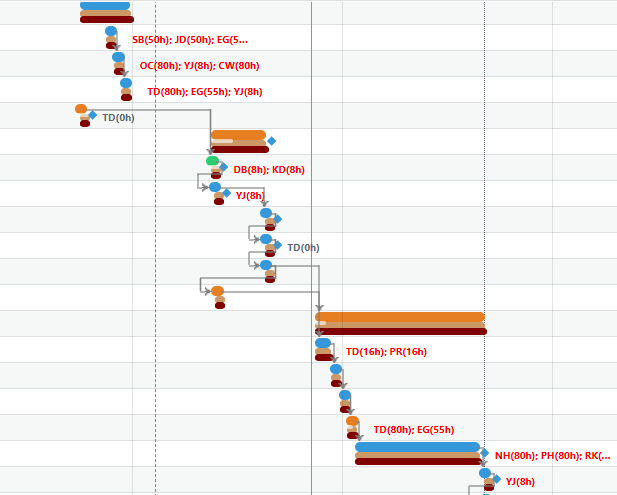

The baseline schedule is displayed by a brown timeline in the Gantt.

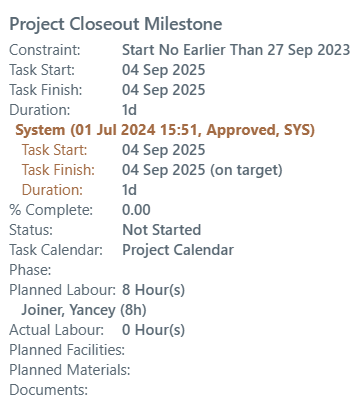

A tooltip provides further information as to the degree of deviation between the Baseline and the current schedule.

Note: The baselines taken at a program level may be different from those taken at a project level. When viewing the Gantt at a program level, if a sub-project does not include the selected baseline, no baseline information for that project will be shown.

Display deviation from baseline as a column in the Gantt

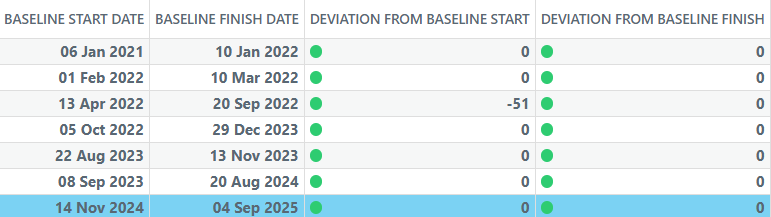

Four baseline related columns are available for display in the Gantt:

• Baseline Start Date
• Baseline Finish Date
• Deviation from Baseline Start
• Deviation from Baseline Finish

These columns display the dates from the selected baseline along with the deviation (in days) from the current task dates.

Note: The deviation for baseline is in working days unless the task is in elapsed duration in which case deviation is in days.
